◇ Product Introduction ◇ Product Features◇ Technical Indicator
[Product Introduction]

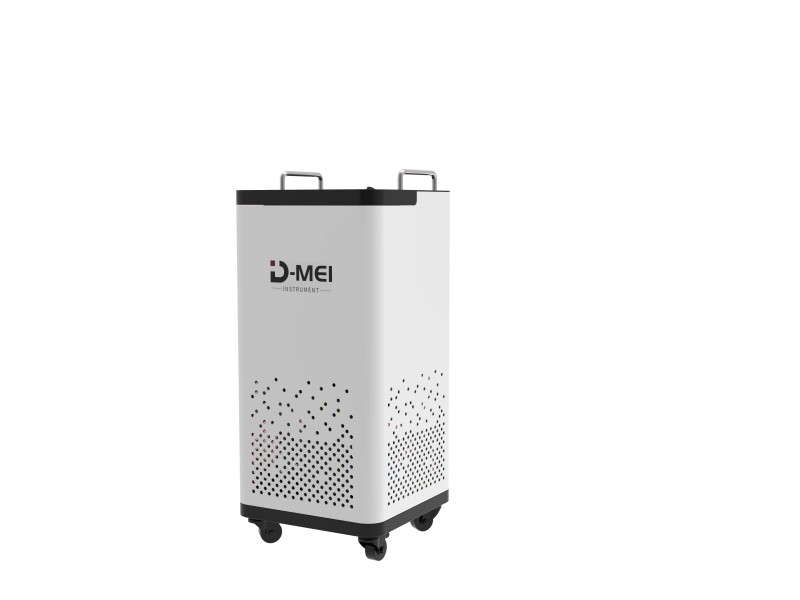

The special black body furnace for infrared body temperature gun is independently developed and produced by our company, which is mainly used for the calibration of infrared ear thermometer and infrared forehead thermometer. It can also be used for the calibration of infrared body surface screeners. It is an accurate calibration instrument in China.The production of the special black body furnace for infrared body temperature gun is mainly based on the principle of human bionics. The cavity is placed in the tank, and the stability reaches ±0.01℃ through the temperature circulation system mainly developed by the company. The cavity is formed by a simple structure of the ear socket. In addition to the use of new materials developed by our company, the emissivity can reach above 0.998, which is an ideal product for calibrating infrared ear thermometers and forehead thermometers.
【Product advantage】
1) Novel appearance design, 4.3 inch touch screen, simple operation.
2) Isothermal black body cavity, only one cavity mouth, cavity mouth radiation evenly distributed along with the spectrum, cavity mouth emissivity above 0.998.
3) Heat insulation between the heating body and the shell, special software is used for pressure limiting heating, no high-power power transformer is required.
4) Automatic temperature control is adopted, which is safe and reliable with fast temperature rise and good temperature stability.
5) Easy to operate, small in size and light in weight, easy to carry, suitable not only for laboratory calibration, but also for on-site calibration.
6) New technologies, such as double-row digital display of measured values and parameter setting of set values, are featured by high precision, multi-function and strong anti-interference ability.
[Technical Indicator]
| Model | DY-HTEB |
| Temperature Range | 30℃~45℃ |
| Temperature Resolution | 0.001℃ |
| Control Mode | Touch Screen |
| Temperature Control | PID Automatic Control |
| The ear thermometer bold-body cavity measures the aperture | φ10mm |
| The bold-body cavity of the forehead gun is tested for aperture | φ45mm |
| Blackbody cavity emittance | ≥0.998 |
| Temperature Stability | ±0.01℃/10min |
| Temperature Uniformity | ±0.02 |
| Temperature accuracy | ±0.05℃ (second standard platinum resistance measured) |
| Liquid zone volume | 12L |
| Power Supply | 220V AC 50HZ |
| Power | 1000W |
| Weight | 21Kg |
| Dimensions | 340mm×220mm×800mm |
| New structure | constant temperature tank + (frontal thermometer black body cavity, ear thermometer black body cavity, glass thermometer test ware) |
| Environment | Temperature≤22℃ Humidity 45-65RH% |
| Optional (not in the scope of quotation) | second standard platinum resistance, High precision digital meter |
Note: other special requirements can be customized according to the needs of users
