        Hi!Welcome to Taian Demei Electromechanical Equipment Co.,Ltd.!
        Taian Demei Electromechanical Equipment Co.,Ltd.

        Focusing on the field of temperature calibration experimental equipment production

        DY-RX04 Current and Voltage Tester

        DY-RX04 Current and Voltage Tester

        DY-RX04 Current and Voltage Tester

        ◇ Product Introduction ◇ Product Features◇ Technical Indicator

        [Product Introduction]

        DY-RX04 current and voltage calibrator/secondary instrument calibrator is a set of explicit DC voltage, current signal source, DC current function in one of the high precision, high resolution, high reliability of hand-held calibration instrument.

        Meter adopts large LCD, clear reading, while the meter also has backlight, reading hold function and automatic shutdown function. The meter can be supplied by DC or AC power, which is more convenient to use.

        [Product Features]

        1. Super protection function: waterproof level IP67, any signal end misconnect 220V automatic protection;

        2. Measurement/output: voltage, current, frequency, millivolt, in which the current output support active, passive;

        3. Can simulate two-wire transmitter;

        4. Accuracy is 0.02%/ 0.05%;

        5. Can provide manual step, automatic step, 0 ~ 100% step and slope output function;

        6. With white LED backlight, manual backlight adjustment and automatic power off function, suitable for field use;

        7. Provide DC24V loop power supply for on-site debugging;

        8. Battery box cover, easy to replace;

        [List of Output and Measurement Functions]

        FunctionMeasurementOutputRemarks
        DC voltage0~30V0~10V
        DC millivolt0~100mV0~100mV
        DC current0~24mA0~24mA
        Frequency1.000Hz~99.999kHz0.00Hz~20.000kHz
        Other24V power supply, step output, slope output, step output

        DY-RX04 Current and Voltage Tester

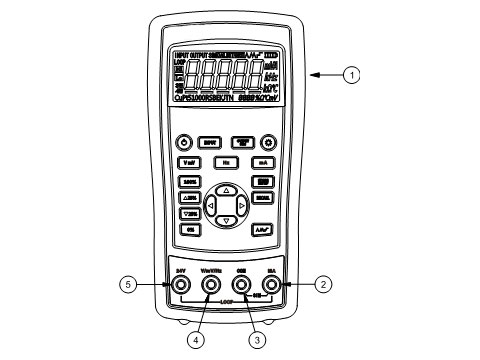

        No.NameDescription
        1Charging and communication interfaceConnect the power adapter to charge the battery or connect the calibrator to the computer
        2Current JackCommon terminal for current measurement and output
        3COM JackCommon terminal for all measurements and outputs
        4V, mV, Hz JackVoltage, millivolt, frequency measurement and output terminals
        524V Socket24V power supply terminal operating in LOOP mode

        DY-RX04 Current and Voltage Tester

        DY-RX04 Current and Voltage Tester

        DY-RX04 Current and Voltage Tester

        DY-RX04 Current and Voltage Tester

        DY-RX04 Current and Voltage Tester 2020-12-9 This article was read 7044 Times
